Wafer Holders with Pin for Wafers with a Flat; 1 – 6″

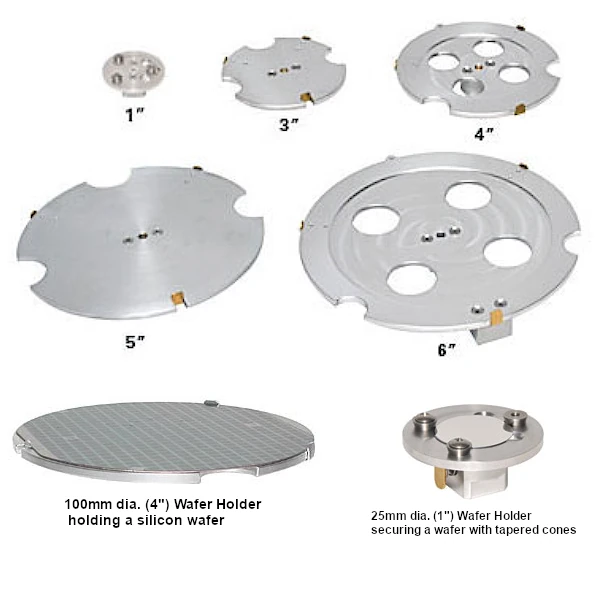

Six wafer holders for diameters varying from 1″-6″ are available.
Made of aluminum with brass clips.

Each wafer holder has two fixed clips and one spring-loaded clip to secure the wafer on the holder.
Cut-outs are provided for easy wafer removal except for 5″.
The 1″ Wafer Holder uses two fixed tapered cones and one spring loaded tapered cone to hold the wafer.

Standard 3.2mm (1/8″) pin with a length of 9.5mm (3/8″).

Screws used are 4-40 x 1/4 Flat Head, SS and 4-40 x 1/4 Tress HD, SS (15388-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS (15390-P, 15369-P, 15389-P)
Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS and 4-40 x 3/8 Flat Head, SS (15382-P)
