Description

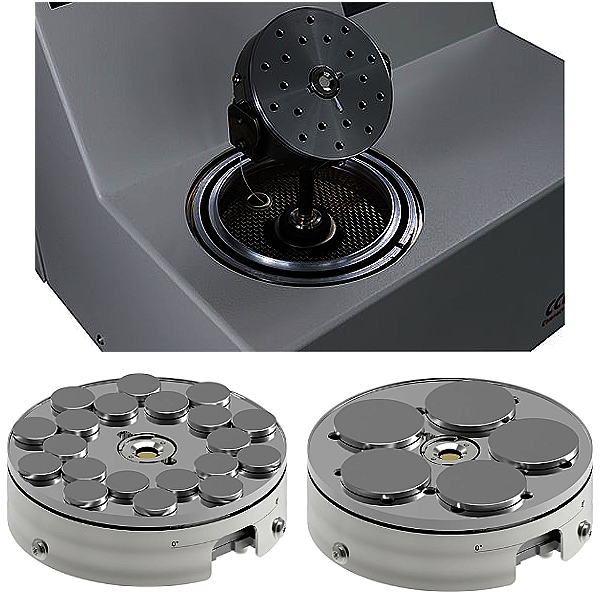

Rotary Table with Speed Regulation

The optional rotary table is attached to the existing stage of the basic unit.
An automatic table recognition and speed control (0 … 100 %) is already integrated into the software of the basic unit.

The table can hold a total of 20 sample stubs.
Simultaneous placement of 5 large stubs with a diameter of 25.4 mm or 10 small stubs with a diameter of 12.7 mm is possible.

Dimensions (D x H) 80 x 23 mm Weight 0.2 kg Number of sample stub holders 20 Rotation direction, table Clockwise Speed 2.15 rpm … 20 rpm Temperature range 10 … 40 C
