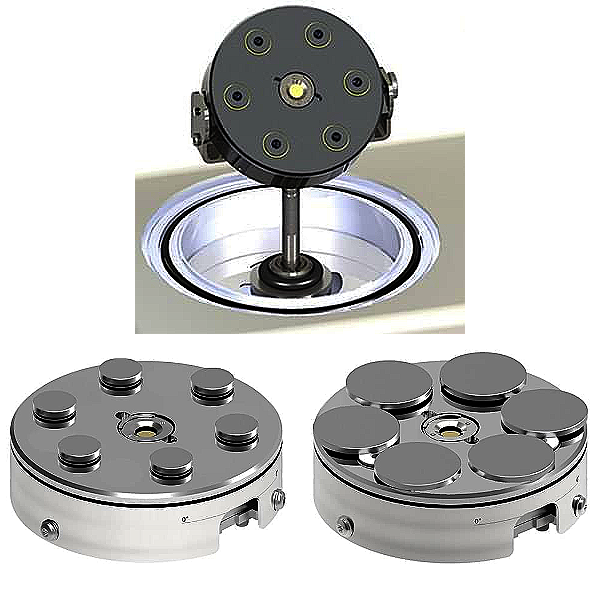

Planetary Gear Table with Speed Regulation

The optional planetary gear table is attached to the existing stage of the basic unit.
A film thickness monitor is fitted as standard which will precisely monitor and control film thickness of carbon and metal films.

An automatic table recognition and speed control (0 … 100%) function is integrated into the software of the basic unit.
The table can hold a total of 6 sample stubs.

The basic table turns clockwise, the 6 sample stub holders turn anticlockwise.
The optional rotary table is attached to the existing stage of the basic unit. An automatic table recognition and speed control (0 … 100 %) is already integrated into the software of the basic unit. The table can hold a total of 20 sample stubs. Simultaneous placement of 5 large stubs with a diameter of 25.4 mm or 10 small stubs with a diameter of 12.7 mm is possible.

Dimensions (D x H) 80 x 23 mm Weight 0.2 kg Number of sample stub holders 6 Rotation direction, table Clockwise Speed, table 2.15 rpm … 20 rpm Rotation direction, sample stub holders Anticlockwise Speed, sample stub holders 7 rpm … 65 rpm Temperature range 10 … 40 C
