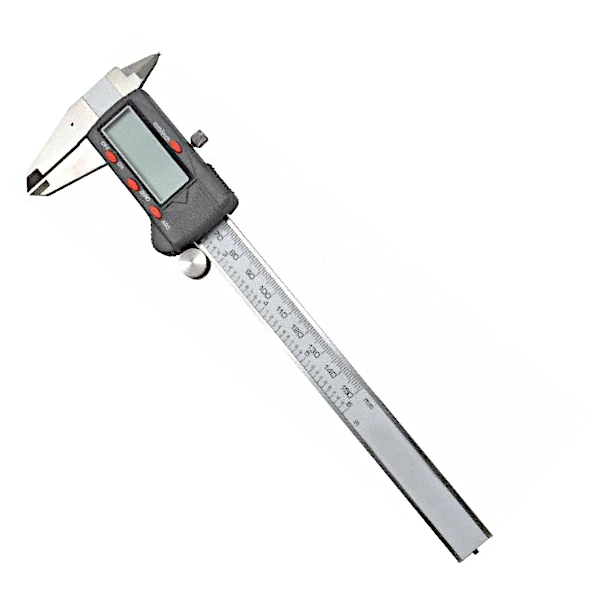

Precise and easy to use digital calipers with great features from Swiss Precision Instruments.
Made from precise ground hardened stainless steel with a large LCD screen.Available with 6″, 8″ and 12″ range.
Accurate to:
0.0010″ (0.025mm) for the 6″ model
0.0016″ (0.038mm) for the 8″ and 12″ models.Absolute or incremental switching, zero-set anywhere within range, inch-metric conversion and auto power on/off.
A NIST traceable certificate is included with each of these calipers w/o additional costs.

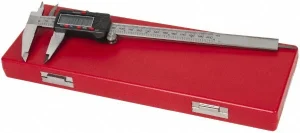

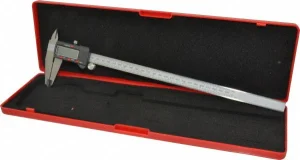

Complete with CR2032 battery and storage case
 |  |
| 6″ Model | 8″ Model | 12″ Model | |
|---|---|---|---|
| Product number | 54497-61 | 54497-81 | 54497-121 |
| Measuring Range | 6″ / 150mm | 8″ / 200mm | 12″ / 300mm |
| Jaw Length | 1.57″ / 40mm | 1.97″ / 50mm | 2.36″ / 60mm |
| Accuracy | 0.0010″ / 0.025mm | 0.0015″ / 0.038mm | 0.0015″ / 0.038mm |
| Display Resolution | 0.0005″ / 0.01mm | 0.0005″ / 0.01mm | 0.0005″ / 0.01mm |
| Material | Stainless Steel | Stainless Steel | Stainless Steel |
| Battery Type | CR2032 | CR2032 | CR2032 |
| Traceable Certificate | NIST, included | NIST, included | NIST, included |
| Depth Measurement | Yes | Yes | Yes |
| Data Output | No | No | No |
| Art. | Description | Unit | Price | Quantity | |
|---|---|---|---|---|---|
| 54497-61 | ECS DIGITAL ELEC. CALIPER 6″ | Each | € 246,80 | ||
| 54497-81 | ECS Digital Electronic Calipers, 8″ (150mm), NIST traceable | Each | € 309,80 | ||
| 54497-121 | ECS DIGITAL ELEC. CALIPER 12″ | Each | € 466,30 |
