TruSlice Tissue Slicing Systems
Accurate & Consistent Slicing | High Quality Processing | UKAS & CAP Compliant
These tools are not intended for use with live human tissue or liquids
or human material unless specifically described for that purpose.
The TruSlice Cutting Systems were developed at Guy’s and St. Thomas’ NHS Foundation Trust1 in London, UK. This system eliminates dissection inaccuracies associated with conventional cutting procedures.
The system is suitable for slicing both fresh and fixed tissue. It greatly reduces the time to gross specimens and ensures optimal fixation and high quality tissue processing.
TruSlice facilitates the precise slicing of fresh breast tissues in accordance with recommendations of HER2 testing in the UK2 and as recommended in the guidelines from ASCO/CAP for labs carrying out IHC on breast specimens in the USA3,4.

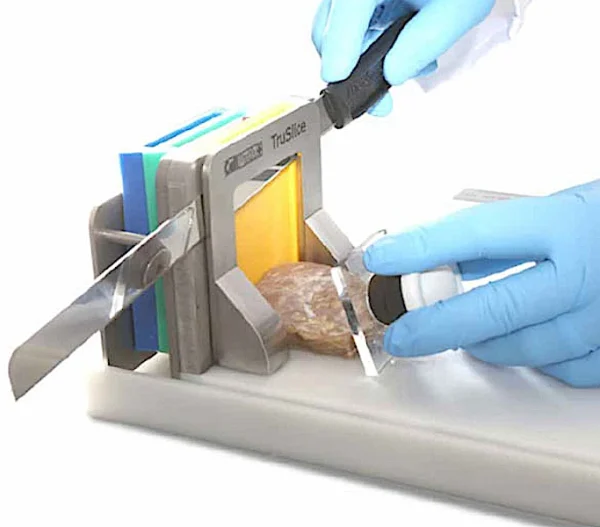

This system uses cut inserts to vary the slice thickness from 2mm, 3mm, 4mm and 5mm to obtain the desired specimen thickness. The use of a clear Perspex immobilization plate, as shown in the above photo, enables the grosser to control pressure to the specimen and aid in cutting tissue slices that are not deformed.
The system is manufactured with 316 stainless steel. It is designed to allow quick and easy cleaning.
An optional calibration set is available for the user to check the accuracy of specimen thickness. A complete list of available accessories can be seen below.
Features & Benefits
- Enables accurate and consistent slicing of tissue specimens.
- Suitable for slicing both fresh and fixed tissue.
- Ensures consistent high quality processing and reduced processing times.
- Small footprint at the grossing bench.
- 50mm Immobilization Plate facilitates grossing of soft tissue specimens.
- Robust instrument manufactured from 316 stainless steel.
Easy to clean. - Optional UKAS Calibration Set ensures confidence in the accuracy of the grossing system.
- Optional SureCut Dissection Board specifically developed to accommodate TruSlice system and a calibrated ruler.
System Includes
- TruSlice Specimen Cut-up System
- TruSlice Cut Inserts: 2mm (red); 3mm (yellow); 4mm (green); 5mm (blue)
- TruSlice Small Cutting Insert
- TruSlice 50mm Immobilization Plate
- MacroKnife 250mm (10″) Lung Knife
- TruSlice Quick Start Instructions for Use
- 3mm Allen Key
- Waterproof Case 521mm (20.5″) with Foam
- Super Mega Hex Cassette Sample Pack
- Super Mega Slim Cassette Sample Pack
Specifications
- Dimensions: W 120mm x D 260mm x H 110mm (4.7 x 10.2 x 4.3″)
- Cutting Face: W 62mm x H 71.75mm (2.4 x 2.8″)
- Weight: 5Kg (11lbs)
- Material: 316 Stainless Steel
- Inserts: HDPE Plastic
https://player.vimeo.com/video/630324819?h=328e757cba
Loading…
Product
Order
Product
TruSlice Manual
This system uses cut inserts to vary the slice thickness from 2mm, 3mm, 4mm and 5mm to obtain the desired specimen thickness.
no. 27131
Order
Product
Description
Order
Product
SureCut Dissection Board
The SureCut Dissection Board allows the TruSlice Specimen Grossing System to integrate with a cutting board.
no. 27131-1
Description
SureCut Dissection Board
The SureCut Dissection Board allows the TruSlice Specimen Grossing System to integrate with a cutting board.
The polypropylene manufactured cut up boards are durable, thick and easy to clean.
They provide a stable cutting platform.
This aids in the slicing, collection and handling of tissue specimens.
The polypropylene boards will not dull knives or fine surgical cutting blades.
Rubber feet are attached to each corner to stop slips.
- Durable
- Easy to clean
- Polypropylene prevents knife edge dulling
- May be set up for left or right-handed slicing
Dimensions: 300 x 300 x 12mm (11.8 x 11.8 x 0.47″)
Order
Product
Description
Order
Product
Steel Ruler
UKAS calibrated, high quality no-rust steel ruler
no. 27131-2
Description
Steel Ruler
- UKAS calibrated, high quality no-rust steel ruler
- 300mm (12″) length x 25mm (1″) wide with metric/imperial scale
- Black figures and graduations permanently contrasted against a satin chrome anti-glare finish
- Metric divisions subdivided to 0.5mm
- Imperial divisions subdivided down to 64ths and 100ths
- Measurement accuracy is standardized at 20 C
Order
Product
Description
Order
Product
Black Diamond Knives
High quality Sheffield Stainless Steel
no. 27131-3
Description
Black Diamond Knives
250mm (10″) Lung Knife, box of 10
- High quality Sheffield Stainless Steel
- Long lasting edge
- Completely disposable; eliminates contamination
- Molded ergonomic handle with finger guard
Order
Product
Description
Order
Product
TruSlice Immobilization Plates
The Clear Perspex Immobilization Plate enables the grossing person to visually control the pressure to a specimen for a precise slice of the tissue specimen.
no. 27131-4
Description
TruSlice Immobilization Plates
The Clear Perspex Immobilization Plate enables the grossing person to visually control the pressure to a specimen for a precise slice of the tissue specimen.
By visually controlling the pressure to the tissue, deformation of the specimen may be prevented during slicing.
The 50mm immobilization plate is provided with the TruSlice systems.
An optional 75mm Immobilization Plate is available for handling large tissues.
Dimensions:
50mm Immobilization Plate: 50 x 50mm (2″)
75mm Immobilization Plate: 75 x 75mm (3″)
