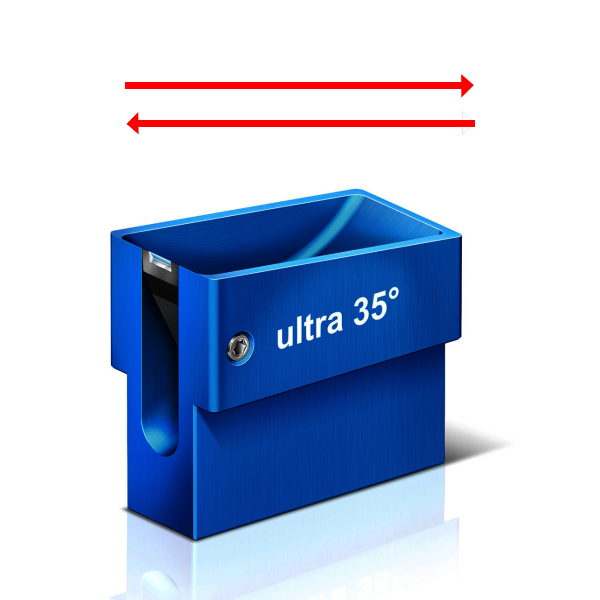

DiATOME 35 Ultra Diamond Knives

These knives are available with a 35° angle and in six edge lengths ranging from 1.5 to 4.0mm.

The 35 angle knives have proved advantageous for sectioning the Lowicryls and non homogenous specimens as well as non-decalcified bone, dental material etc.
They are also the choice for sectioning relatively soft materials research specimens, including metals and polymers, as well as hard specimens, such as semiconductors, superconducting oxides, catalysts and nanocrystalline ceramics.

Cutting range: 30nm 200nm.

This knife in the triangular holder can be used for cutting dry sections (100nm to 2µm) of epoxy or acrylic embedded biological specimens for elemental analysis and SIMS.
